C Band Bucs 200W / 750W / 1000W / 3000W

  • Power Range: 200W to 3000W
  • Freq. Range: 5.8 - 6.4 / 6.7 - 7.2 GHz. Customizable
  • Operating Temp: -40°C to +60°C
  • Superior IMD / Low Spurious
  • IP67 / Field-Proven Reliability

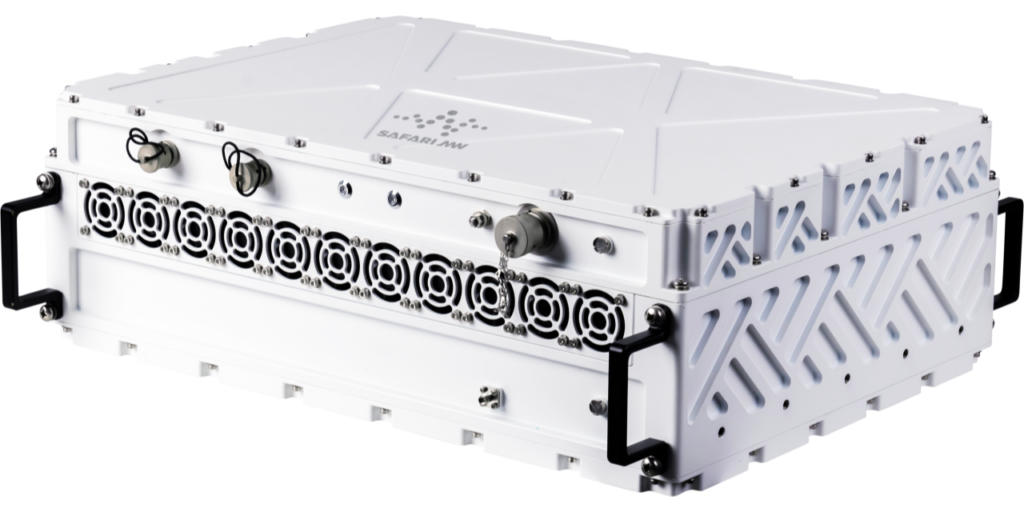

C-Band SSPA, Up to 3000W

Technical Specifications

C Band Bucs 200W / 750W / 1000W / 3000W technical specification table
Parameter Min. Typ. Max. Units Others
Freq. Range 5.8 -- 6.4 GHz 6.7 - 7.2 GHz. Customizable
Psat -- -- 65 dBm 200W / 750W / 1000W / 3000W
Gain 60 61 64 dB Customizable
Third-order IMD -25 -29 -- dBc --
Spurious Rejection -60 -67 -- dBc --
