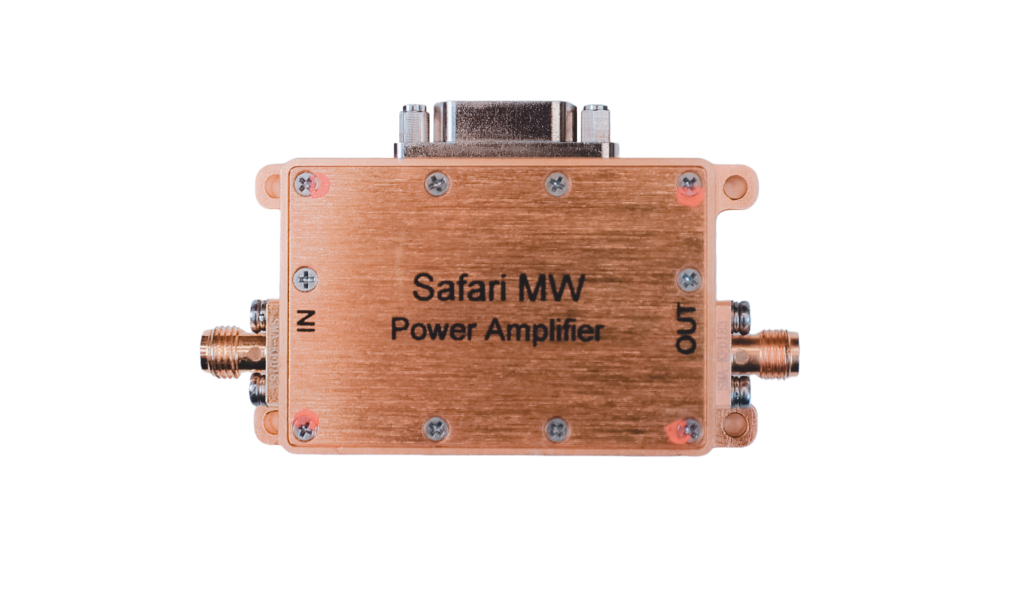

OFDM Power Amplifiers

Technical Specifications

OFDM Power Amplifiers technical specification table
Part #	Freq. Min.(GHz)	Freq. Max.(GHz)	Gain(dB)	Gain Flatness (dB) Typ.	VSWR(:1)	Pout(dBm)	Non-Harmonic Spurs(dBc)	2nd Harmonics(dBc)	Efficiency
DPA-300M1G-4345	0.3	1	43	±5	≤2.5	≥43.979	65	≥8 / 15	≥43 / 50
DPA-800M1G-5343	0.8	1	53	≤±4.5	≤2.0	≥41.461	60	≥18 / 25	≥30 / 40
DPA-1G11G3-4640	1.1	1.3	46	±2	≤1.4	40	50	30	15
DPA-1G21G7-4743	1.2	1.7	47	±3.5	1.6	43	55	40	40
DPA-50M1G8-4237	0.05	1.8	42	±3	-	≥33	60	≥8	≥23 / 30
DPA-30M2G-3436	0.03	2	34	±3.5	≤2.8	36.021	55	10	≥24 / 30
DPA-1G2G4-4144	1	2.4	41	±5	2	43.5	60	12	30
DPA-1G2G4-3944	1	2.4	39	±5	-	44	50	20	30
DPA-1G2G4-3145	1	2.4	31	±5	-	45	60	18	30
DPA-2G2G4-4742	2	2.4	47	±1.5	≤2.1	42.304	≥52 / 55	≥70 / 72	≥13 / 18
DPA-2G32G5-4240	2.3	2.5	≥42	±3.0	≤2	40	≥55	40	≥20 / 25
DPA-2G32G5-4546	2.3	2.5	45	≤±4	-	46	65	≥36	22
DPA-100M5G-2732	0.1	5	≥27	3	≤2.8	31.761	≥52	≥8 / 10	≥12 / 25
DPA-5G15G3-4045	5.1	5.3	≥40	±2	1.5	44.771	45	20	25
DPA-5G75G9-4046	5.7	5.9	40	±2	1.4	46.021	45	30	35
DPA-20M6G-2031	0.02	6	20	-	≤3	31	50	10	≥13 / 30
DPA-100M6G-3036	0.1	6	30	±5	2.2	36	55	≥5 / 10	15
DPA-2G6G-4845	2	6	48	±6	≤2.4	44.771	≥65	≥10	20
