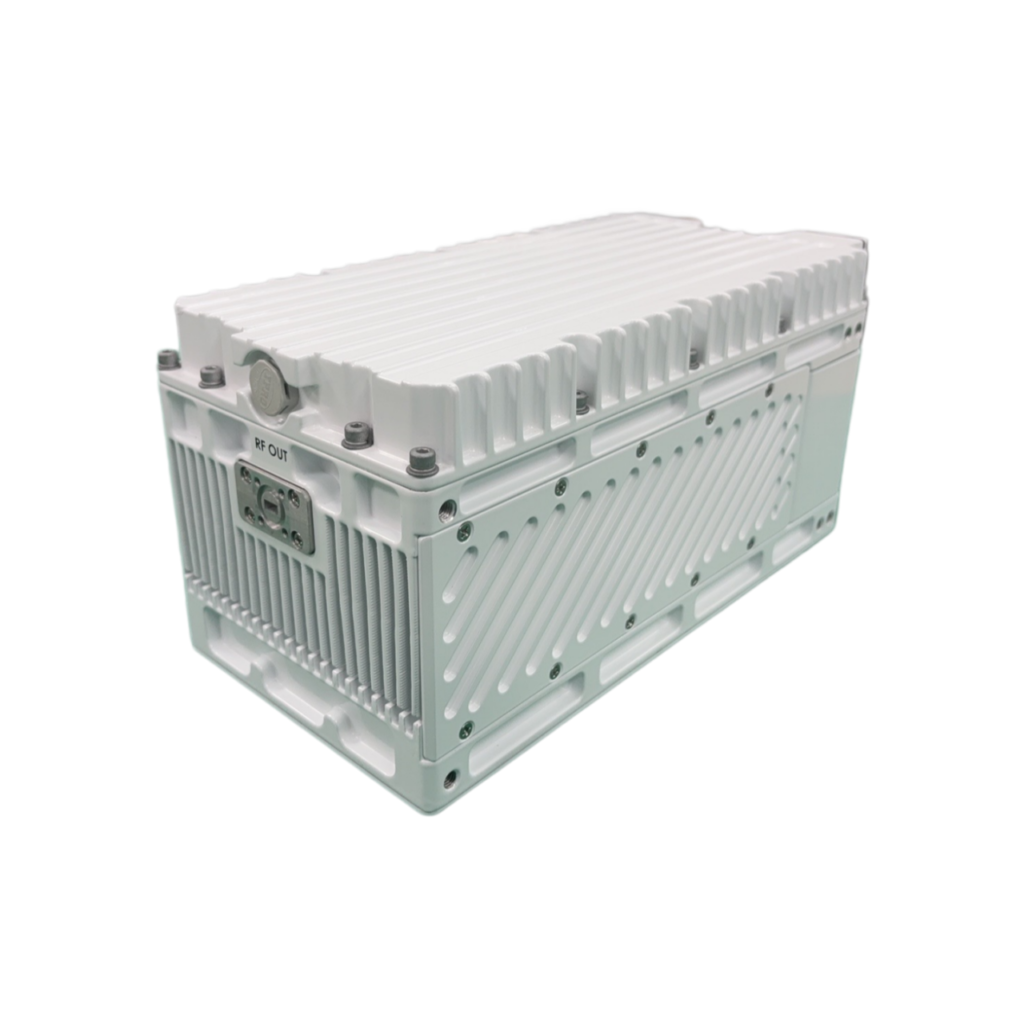

Ku Band Bucs 80W / 100W / 200W / 400W

  • Power Range: 80W to 400W
  • Freq. Range: 13.75 - 14.50 GHz. Customizable
  • Operating Temp: -40°C to +60°C
  • ​Superior IMD / Low Spurious
  • IP67 / Field-Proven Reliability
Ku Band Bucs 80W / 100W / 200W / 400W

Technical Specifications

Ku Band Bucs 80W / 100W / 200W / 400W technical specification table
Parameter Min. Typ. Max. Units Others
Freq. Range 13.75 -- 14.5 GHz Customizable
Psat -- -- 56 dBm 80W / 100W / 200W / 400W
Gain 61 63 65 dB Customizable
Third-order IMD -25 -29 -- dBc --
Spurious Rejection -60 -67 -- dBc --
