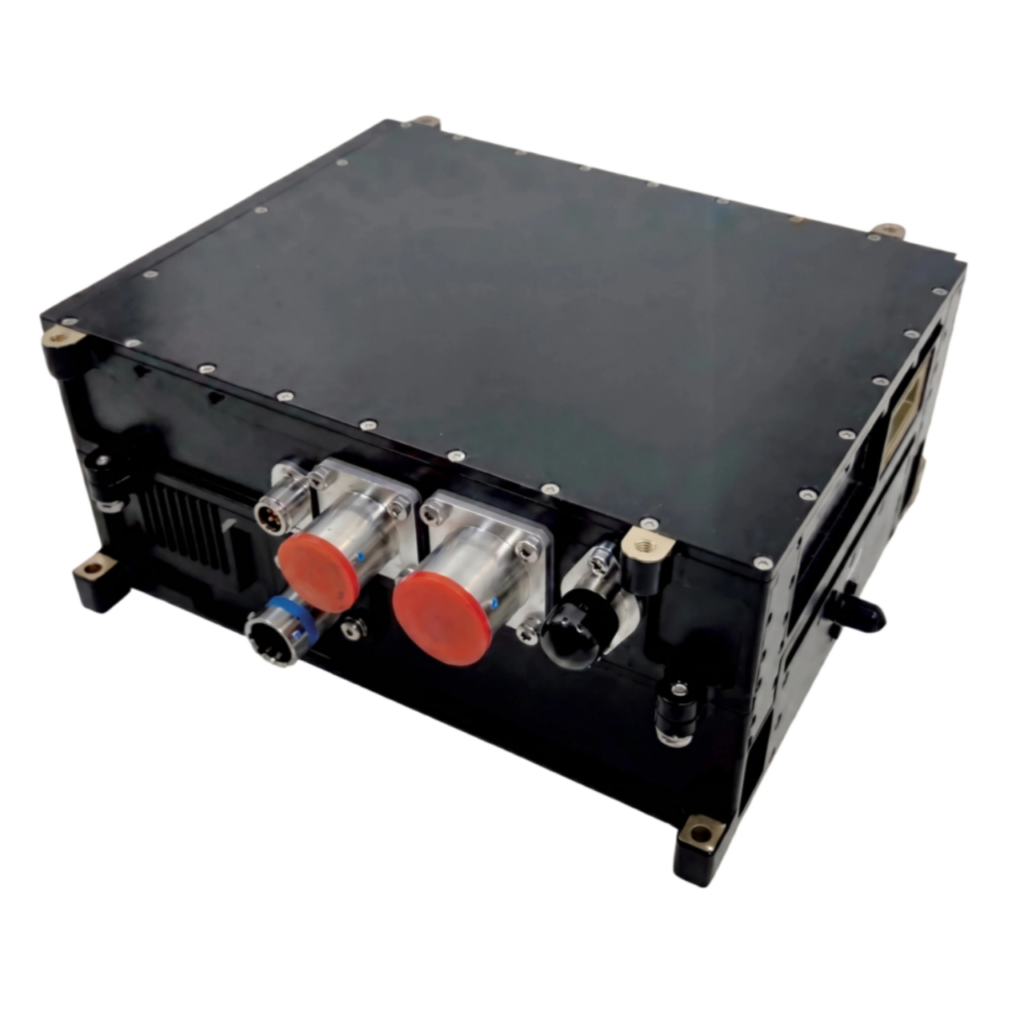

C Band Bucs 20W / 40W / 80W / 100W

  • Power Range: 20W to 100W
  • Freq. Range: 5.8 - 6.4 / 6.7 - 7.2 GHz. Customizable
  • Operating Temp: -40°C to +60°C
  • ​Superior IMD / Low Spurious
  • IP67 / Field-Proven Reliability
C Band Bucs 20W / 40W / 80W / 100W

Technical Specifications

C Band Bucs 20W / 40W / 80W / 100W technical specification table
Parameter Min. Typ. Max. Units Others
Freq. Range 5.8 -- 6.4 GHz 6.7 - 7.2 GHz. Customizable
Psat -- -- 51 dBm 20W / 40W / 80W / 100W
Gain 60 60 63 dB Customizable
Third-order IMD -25 -29 -- dBc --
Spurious Rejection -60 -67 -- dBc --
